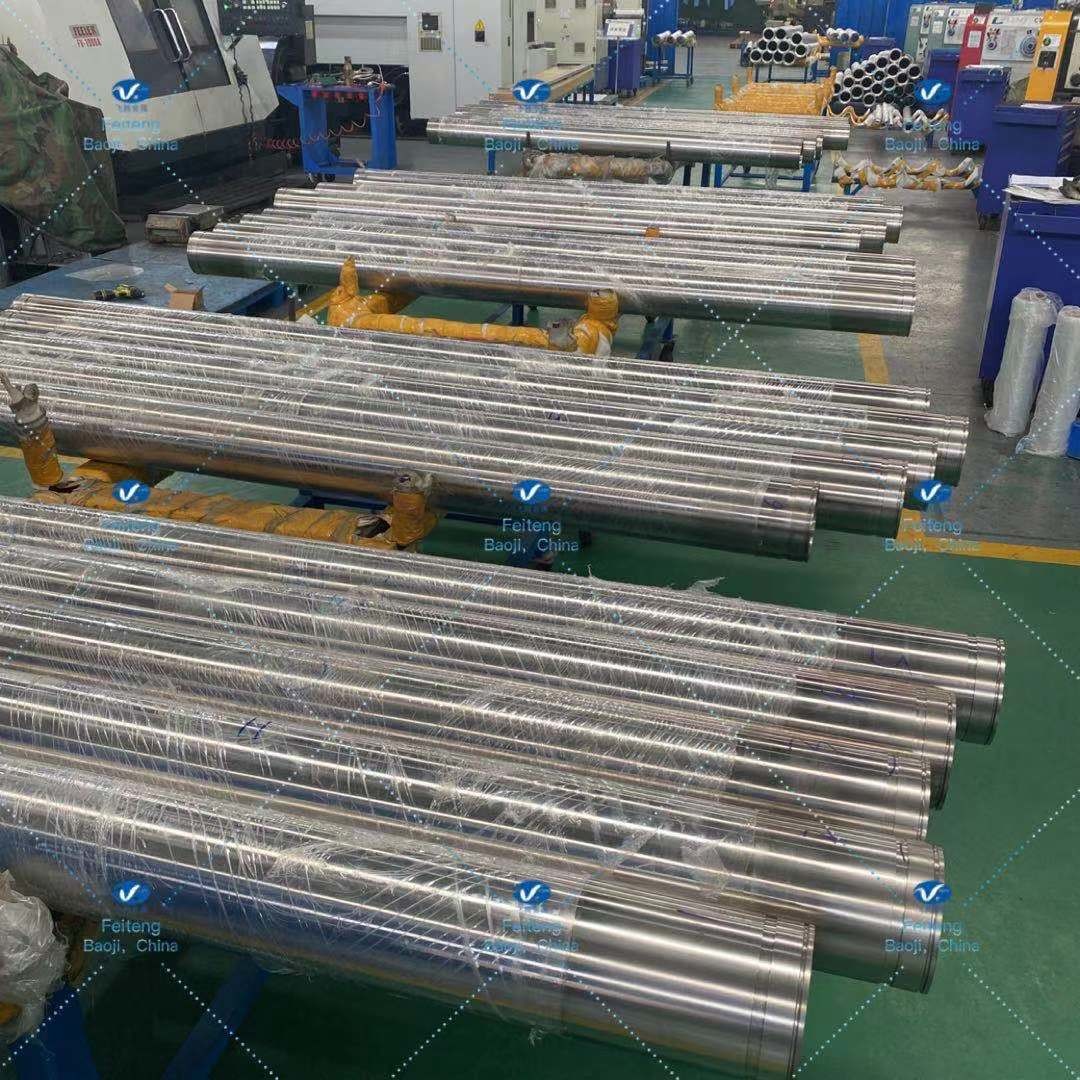

Titanium Tube Target 133OD*125ID*2140L Titanium Gr2 ASTM B861-06 a Vacuum Coating Target
Item name | Titanium tube target |
Size | φ133*φ125*2140 |
Grade | Gr2 |
Packaging | Vacuum package in wooden case |
Port of place | Xi'an port, Beijing port, Shanghai port, Guangzhou port, Shenzhen port |
The coating target is a sputtering source that forms various
functional films on the substrate by magnetron sputtering,
multi-arc ion plating or other types of coating system under
appropriate technological conditions. Magnetron sputtering
principle:
An orthogonal magnetic field and electric field are added between
the sputtered target pole (cathode) and anode, and the required
inert gas (usually Ar gas) is filled in a high vacuum chamber. The
permanent magnet forms a magnetic field of 250 ~ 350 Gauss on the
surface of the target material, which forms an orthogonal
electromagnetic field with the high voltage electric field. 2)
Magnetron sputtering target type:
Metal sputtering target material, coating alloy sputtering coating
material, ceramic sputtering coating material, boride ceramic
sputtering target materials, carbide ceramic sputtering target
material, fluoride ceramic sputtering target material, nitride
ceramic sputtering target materials, oxide ceramic target, selenite
ceramic sputtering target material, silicide ceramic sputtering
target materials, sulfide ceramic sputtering target material,
tellurium ceramic sputtering target material, Other ceramic target,
Chromium-doped silicon monoxide ceramic target (CR-SiO), Indium
phosphatizing target (InP), Lead arsenide target (PbAs), indium
arsenide target (InAs).
Features
1. Low density and high strength
2. Customized according to the drawings required by customers
3. Strong corrosion resistance
4. Strong heat resistance
5. Low temperature resistance
6. Heat resistance
![]() |
